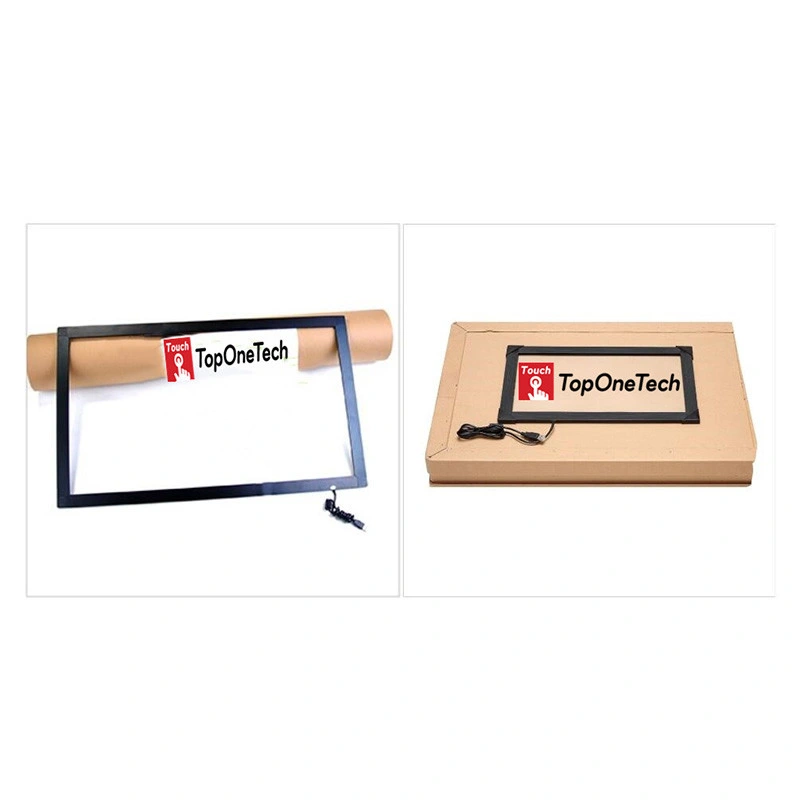

Toponetech's 24 inch infrared resistive (IR) touchscreens through various touch panel structures including anti sacratched glass layers.
Due to its highly durable and smooth surface,infrared resistive touch screen is suitable for industrial touchscreen display applications,Gaming,
Transprotation,and so on.The waterproof technology of infrared resistive touchscreen, which can be operated with Works with water,dust,oil,
moisten and provides a high quality touch experience under harsh condition. (up to 2 touch points). Toponetech offers both standard and custom
industrial display sizes.
Specifications:

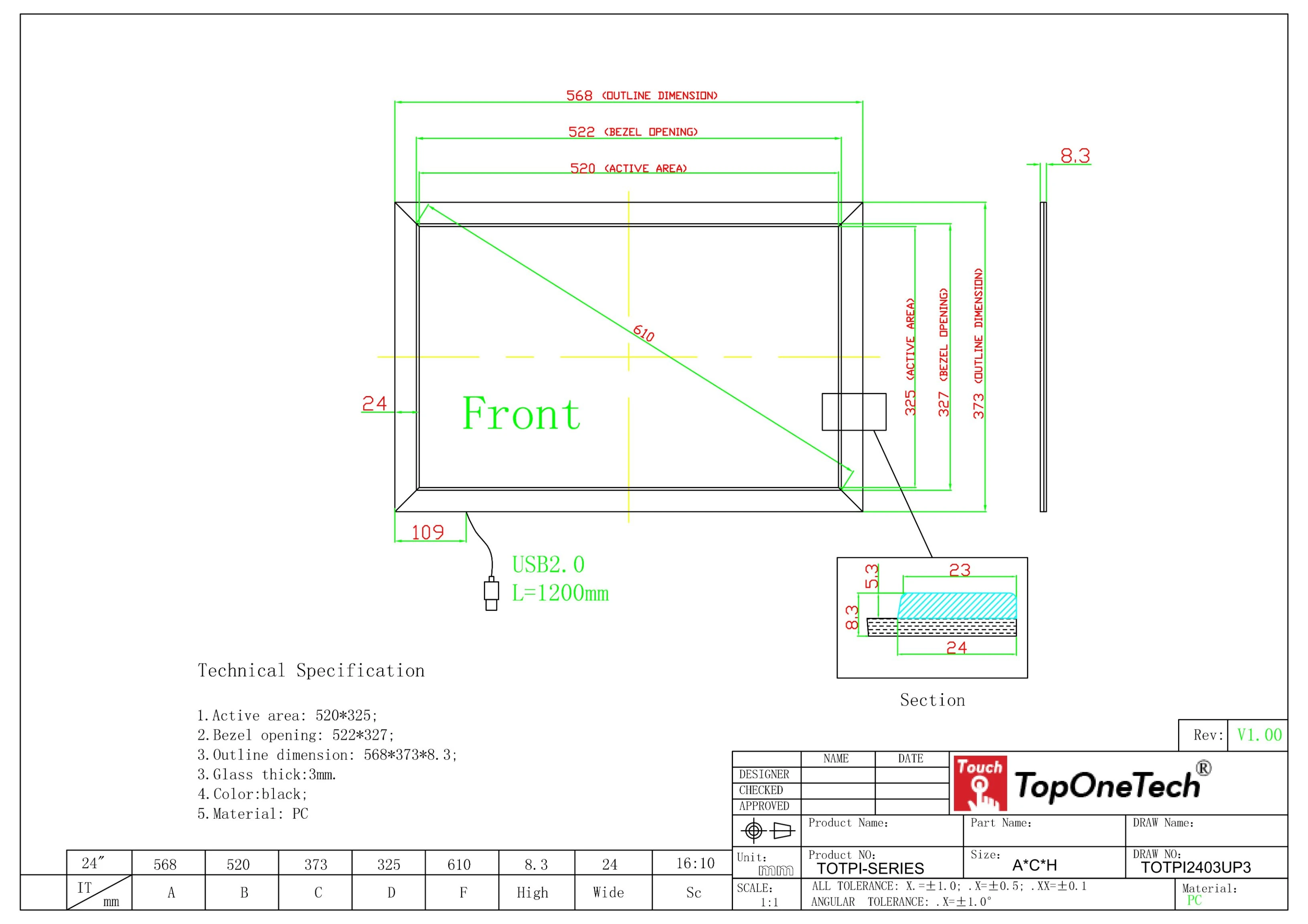

Mechanical Dimensions
Due to its highly durable and smooth surface,infrared resistive touch screen is suitable for industrial touchscreen display applications,Gaming,
Transprotation,and so on.The waterproof technology of infrared resistive touchscreen, which can be operated with Works with water,dust,oil,
moisten and provides a high quality touch experience under harsh condition. (up to 2 touch points). Toponetech offers both standard and custom
industrial display sizes.
Specifications:
| Size | Broder(mm) | Thickness | Frame size | Touch area | Ratio of length&width | Part number | |||
| No glass | Length(mm) | Windth(mm) | Length(mm) | Windth(mm) | Diagonal line (mm) | ||||
| 10.1" | 24 | 8.3 | 266 | 185 | 218 | 137 | 257 | 16:10 | TOTTPI1013U-P3 |
| 10.4" | 24 | 8.3 | 260 | 207 | 212 | 159 | 265 | 4:3 | TOTTPI1041U-P3 |
| 11.6" | 24 | 8.3 | 305 | 193 | 257 | 145 | 295 | 16:9 | TOTTPI1162U-P3 |
| 12.1" | 24 | 8.3 | 295 | 233 | 247 | 185 | 308 | 4:3 | TOTTPI1211U-P3 |
| 12.1" | 24 | 8.3 | 311 | 213 | 263 | 165 | 310.5 | 16:10 | TOTTPI1213U-P3 |
| 15" | 24 | 8.3 | 353 | 277 | 305 | 229 | 382 | 4:3 | TOTTPI1501U-P3 |
| 15.6" | 24 | 8.3 | 393 | 242 | 345 | 194 | 397 | 16:9 | TOTTPI1562U-P3 |
| 17" | 24 | 8.3 | 386 | 319 | 338 | 271 | 432 | 4:3 | TOTTPI1701U-P3 |
| 17" | 24 | 8.3 | 416 | 279 | 368 | 231 | 432 | 16:10 | TOTTPI1703U-P3 |
| 17.3" | 24 | 8.3 | 431 | 264 | 383 | 216 | 440 | 16:9 | TOTTPI1732U-P3 |
| 18.5" | 24 | 8.3 | 459 | 280 | 411 | 232 | 470 | 16:9 | TOTTPI1852U-P3 |
| 19" | 24 | 8.3 | 426 | 351 | 378 | 330 | 483 | 4:3 | TOTTPI1901U-P3 |
| 19" | 24 | 8.3 | 459 | 304 | 411 | 256 | 483 | 16:10 | TOTTPI1903U-P3 |
| 19.5" | 24 | 8.3 | 481 | 288 | 433 | 240 | 496 | 16:9 | TOTTPI1952U-P3 |
| 21.5" | 24 | 8.3 | 525 | 316 | 477 | 268 | 547 | 16:9 | TOTTPI2152U-P3 |
| 22" | 24 | 8.3 | 523 | 345 | 475 | 297 | 559 | 16:10 | TOTTPI2203U-P3 |
| 23" | 24 | 8.3 | 560 | 337 | 512 | 289 | 585 | 16:9 | TOTTPI2302U-P3 |
| 23.6" | 24 | 8.3 | 570 | 343 | 522 | 294 | 597 | 16:9 | TOTTPI2362U-P3 |
| 24" | 24 | 8.3 | 580 | 347 | 532 | 299 | 610 | 16:9 | TOTTPI2402U-P3 |
| 24" | 24 | 8.3 | 568 | 373 | 520 | 325 | 610 | 16:10 | TOTTPI2403U-P3 |
| 26" | 25 | 14.5 | 628 | 376 | 578 | 326 | 664 | 16:9 | TOTTTD2602U-A3 |
| 27" | 25 | 14.5 | 650 | 389 | 600 | 339 | 691 | 16:9 | TOTTTD2702U-A3 |
| 32" | 25 | 15.5 | 751 | 445 | 701 | 395 | 805 | 16:9 | TOTTTD3202U-A4 |
| 36.5" | 25 | 15.5 | 858 | 505 | 808 | 455 | 927 | 16:9 | TOTTTD3652U-A4 |
| 37" | 25 | 15.5 | 872 | 513 | 822 | 463 | 943 | 16:9 | TOTTTD3702U-A4 |
| 40" | 25 | 15.5 | 938 | 551 | 888 | 501 | 1020 | 16:9 | TOTTTD4002U-A4 |
| 41.6" | 25 | 15.5 | 972 | 570 | 922 | 520 | 1058 | 16:9 | TOTTTD4162U-A4 |
| 42" | 25 | 15.5 | 983 | 576 | 933 | 526 | 1070 | 16:9 | TOTTTD4202U-A4 |
| 43" | 25 | 15.5 | 994 | 582 | 944 | 532 | 1084 | 16:9 | TOTTTD4302U-A4 |
| 46" | 25 | 15.5 | 1071 | 625 | 1021 | 575 | 1172 | 16:9 | TOTTTD4602U-A4 |
| 47" | 25 | 15.5 | 1092 | 637 | 1042 | 587 | 1197 | 16:9 | TOTTTD4702U-A4 |
| 48" | 25 | 15.5 | 1107 | 645 | 1057 | 595 | 1213 | 16:9 | TOTTTD4802U-A4 |
| 49" | 25 | 15.5 | 1127 | 657 | 1077 | 607 | 1235 | 16:9 | TOTTTD4902U-A4 |
| 50" | 25 | 15.5 | 1148 | 669 | 1098 | 619 | 1265 | 16:9 | TOTTTD5002U-A4 |
| 55" | 25 | 15.5 | 1263 | 734 | 1213 | 684 | 1402 | 16:9 | TOTTTD5502U-A4 |
| 58" | 25 | 15.5 | 1322 | 773 | 1272 | 723 | 1460 | 16:9 | TOTTTD5802U-A4 |
| 59.6" | 25 | 15.5 | 1370 | 792 | 1320 | 742 | 1514 | 16:9 | TOTTTD5962U-A4 |
| 60" | 25 | 15.5 | 1383 | 801 | 1333 | 751 | 1529 | 16:9 | TOTTTD6002U-A4 |
| 65" | 25 | 15.5 | 1482 | 857 | 1432 | 807 | 1643 | 16:9 | TOTTTD6502U-A4 |
| 70" | 25 | 15.5 | 1603 | 925 | 1553 | 875 | 1783 | 16:9 | TOTTTD7002U-A4 |
| 75" | 25 | 16.5 | 1702 | 980 | 1652 | 930 | 1896 | 16:9 | TOTTTD7502U-A5 |
| 79" | 25 | 16.5 | 1791 | 1030 | 1741 | 980 | 1998 | 16:9 | TOTTTD7902U-A5 |
| 80" | 25 | 16.5 | 1827 | 1052 | 1777 | 1002 | 2040 | 16:9 | TOTTTD8002U-A5 |
| 82" | 25 | 16.5 | 1859 | 1069 | 1809 | 1019 | 2087 | 16:9 | TOTTTD8202U-A5 |
