Highest quality in China for 6040 baggage scanners
Biggest and direct manufacturer for competitive prices & quick delivery

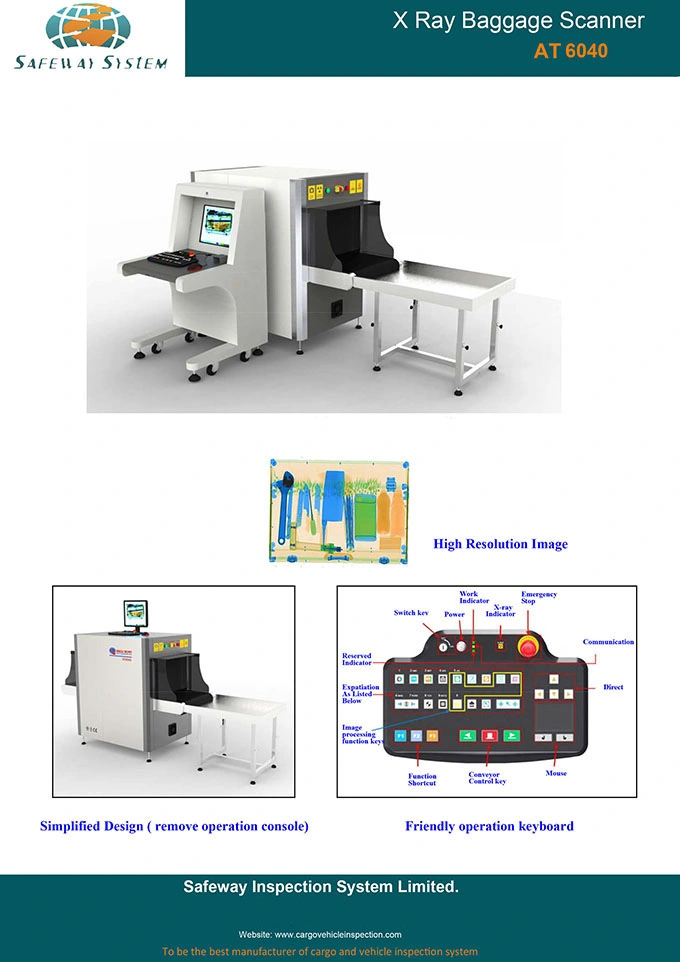

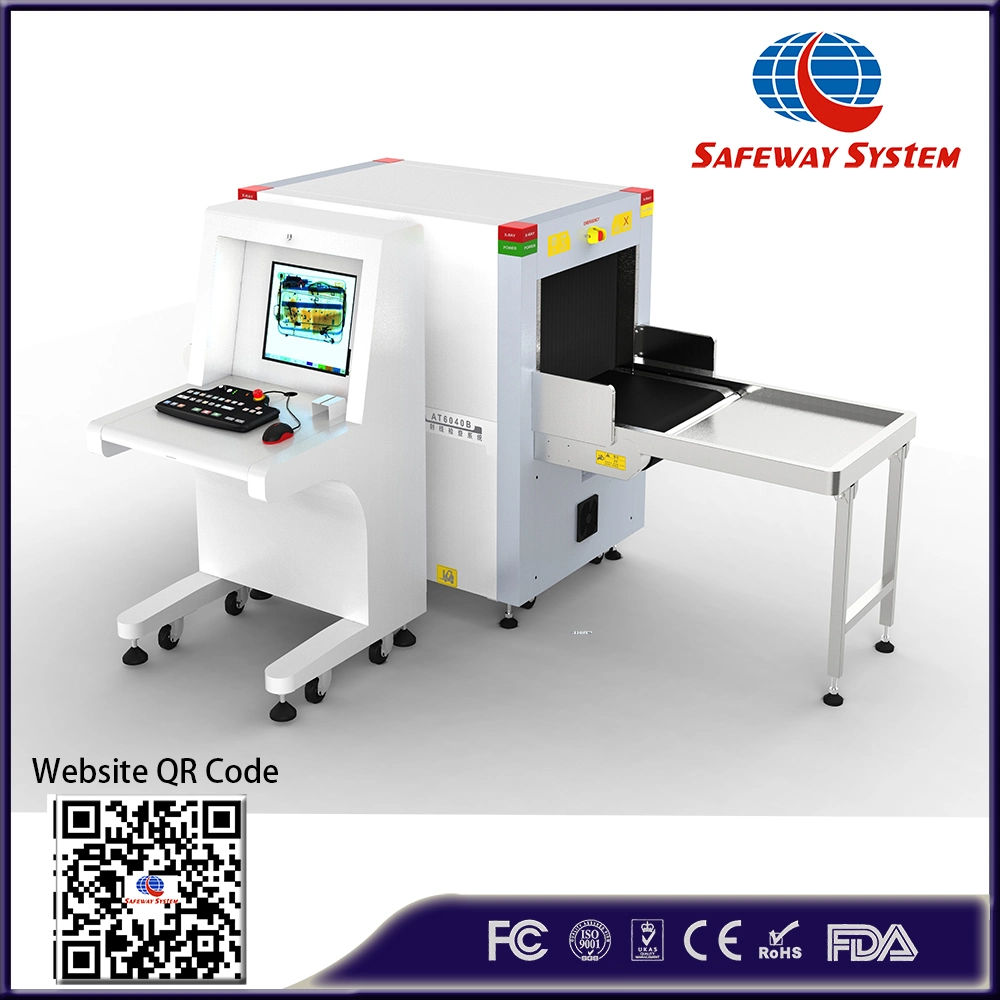

X-ray Baggage Scanner Model: AT6040B


-------------------------------------------------------------------------------------------------------------


  Product highlights

* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
* baggage counter


Physical Specifications
Unit weight (kgs)455
Unit size (mm)2007(L)*868(W)*1314(H)
after packed in wooden pallet -
Gross weight (kgs)500
Packing size#1: 212*101*156cm
 #2: 87*87*141cm

General Specifications
Tunnel size(mm)615(L)*418(W)
Conveyor Speed(m/s)0.22
Conveyor height(mm) 680
Conveyor Max Load(kgs)150
X ray dose per each inspectionTypical 2.0 μGy/h, guarantee 2.5 μGy/h
X ray leakage Typical1.0 μGy/h, guarantee 1.5 μGy/h
PenetrationTypical 32mm, guarantee 30mm
Wire ResolutionTypical AWG40, guarantee AWG38
Penetration ResolutionTypical AWG32, guarantee AWG30
Spatial resolution:Typical dia1.0mm,Vertical: dia1.0mm; Guarantee dia1.3mm,Vertical: dia1.3mm;
Power Consumption0.8KVA
Noise< 60dB
Film SafetyGuarantee ASA/ISO1600 Film

X-ray Generator (single)
Anode Voltage140 KV
Anode Current500μA(0.5mA)
Generate angle80 degree upward
Generate directfrom bottom to top
Cooling / Duty CycleOil Cooling /100%
Brandsafeway local made

Image System
X-ray SensorL-Shaped Photodiode Array (multi-energetic)  , 12bit Deep
Image DisplayHigh resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall All preceding images recallable, retrieval
Explosives & Narcotics DetectionExplosives & narcotics alarm and highlight according to atomic number signature
High Density Region AlarmImpenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image ProjectionInserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image ArchiveUp to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous FunctionsTime/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network ApplicationsMultiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags

Operating Environment
Operation temperature/Humidity 0ºC-45ºC / 5%-95%(non-condensing)
Storage Temperature/Humidity -40ºCto 70ºC / 5%-95%(non-condensing)
Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS 15mins, 30mins, 60mins etc, optional

Computer and other
MonitorHigh Resolution Color, LCD Accord, 17inch
Hard DiskSEAGATE 500G 3.5"
CPUG1610 2.6G
Storage2GB 1600MHz DDR3 Innodisk
Main boardH61 SYM76993VGGA

Compliance
International * ISO19001 ; ISO14001 ; OHSMS18001 ;
* CE
* USA FDA
* Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard - less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface)
National (China)* Health Inspection Report
* Computer Software Copyright Registration Certificate
* Software Product Registration Certificate

* Radiation Safety Certificate from Ministry of Public Security
* Quality Certification from Safety and Police Electronic Products Quality Inspection Center
* Design pantent certification: Patent No. : 201020700245.2 ; Patent No. : 201020700245.8 ; Patent No. : 201020700256.0
